PSEN1-M146L-Het_ICC_DAPI_MAP2

cat no | io1072, io1073, io1074

ioGlutamatergic Neurons PSEN1 M146L/WT

Human iPSC-derived Alzheimer's disease model

ioGlutamatergic Neurons PSEN1 M146L/WT are opti‑ox™ precision reprogrammed glutamatergic neurons carrying a genetically engineered heterozygous M146L mutation in the PSEN1 gene encoding presenilin 1 protein. These cells offer a rapidly maturing, disease relevant system for investigating the role of PSEN1 M146L mutation in early-onset Alzheimer's disease (AD).



Request a quote >



Place your order

Confidently investigate your phenotype of interest across multiple clones with our disease model clone panel. Detailed characterisation data (below) and bulk RNA sequencing data (upon request) help you select specific clones if required.

per vial

Benchtop benefits

comparison_0

Make True Comparisons

Pair the ioDisease Model Cells with the genetically matched wild-type ioGlutamatergic Neurons to investigate the impact of the PSEN1 missense mutation on early-onset AD.

scalable_0

Scalable

With opti-ox technology, we can make billions of consistently reprogrammed cells, surpassing the demands of industrial workflows.

quick_0

Quick

The disease model cells and isogenic control are experiment ready as early as 2 days post revival, and form structural neuronal networks at 11 days.

Technical data

Highly characterised and defined

ioGlutamatergic Neurons PSEN1 M146L/WT express neuron-specific markers comparably to the wild type control

io1072-io1073-io1074-ioGlutamatergic-Neurons-PSEN1-M146L-het-ICC-MAP2-TUBB3
io1072-io1073-io1074-ioGlutamatergic-Neurons-PSEN1-M146L-het-ICC-MAP2-VGLUT2

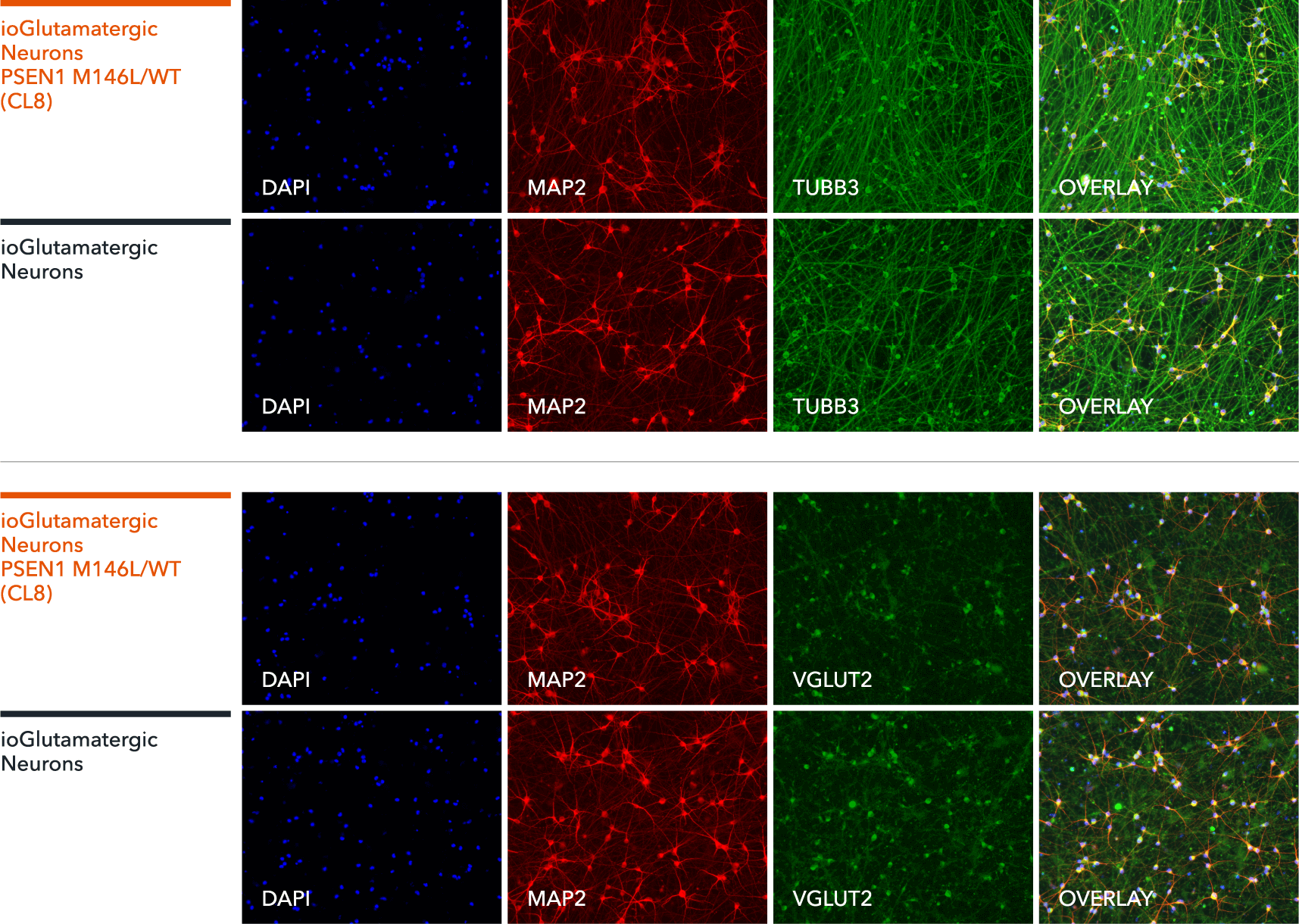

Immunofluorescent staining on post-revival day 11 demonstrates similar homogenous expression of pan-neuronal proteins MAP2 and TUBB3 (left tab) and glutamatergic neuron-specific transporter VGLUT2 (right tab) in ioGlutamatergic Neurons PSEN1 M146L/WT clones compared to the genetically matched control. 100X magnification.

ioGlutamatergic Neurons PSEN1 M146L/WT form structural neuronal networks by day 11

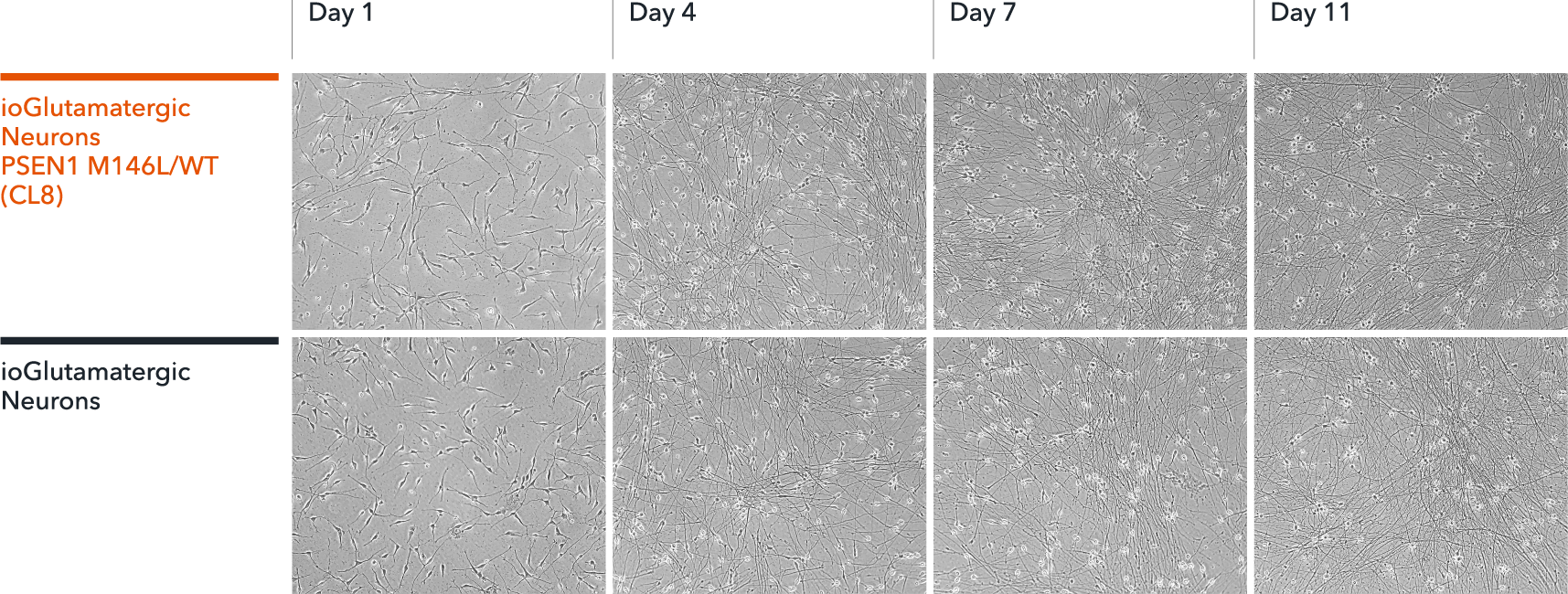

ioGlutamatergic Neurons PSEN1 M146L/WT morphology from day 1 to 11 post-thaw.

ioGlutamatergic Neurons PSEN1 M146L/WT clones mature rapidly and form structural neuronal networks over 11 days, highly similar to the genetically matched control. Day 1 to 11 post thaw; 100X magnification.

ioGlutamatergic Neurons PSEN1 M146L/WT demonstrate gene expression of neuronal-specific and glutamatergic-specific markers following reprogramming

io1072_PSEN1-M146L-Het_RT-qPCR
io1073_io1074_PSEN1-M146L-Het_RT-qPCR

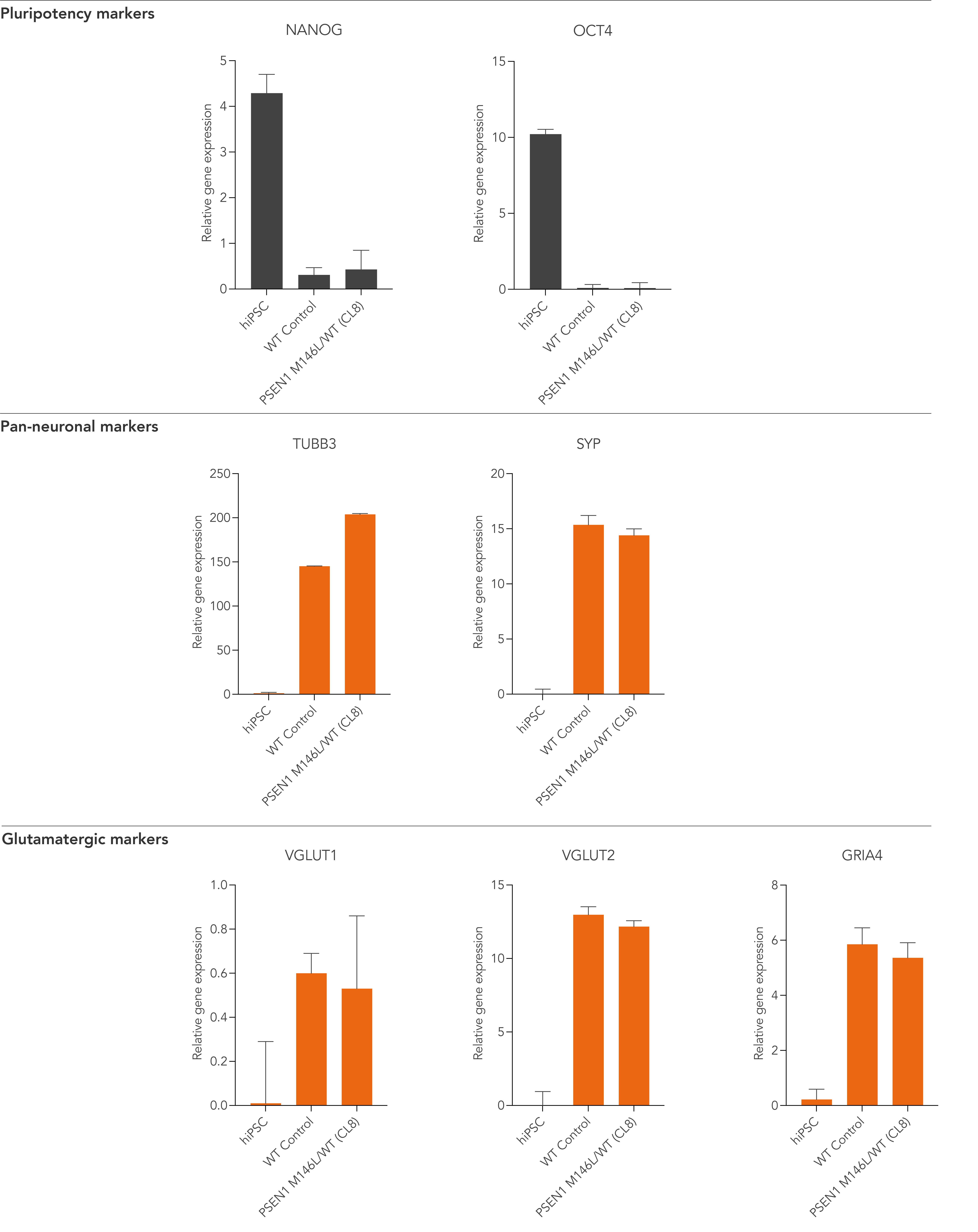

Gene expression analysis demonstrates that ioGlutamatergic Neurons PSEN1 M146L/WT clones and wild-type ioGlutamatergic Neurons (WT Control) lack the expression of pluripotency markers (NANOG and OCT4) at day 11, whilst robustly expressing pan-neuronal (TUBB3 and SYP) and glutamatergic-specific (VGLUT1 and VGLUT2) markers, as well as the glutamate receptor GRIA4. Gene expression levels were assessed by RT-qPCR (data normalised to HMBS; cDNA samples of the parental human iPSC line (hiPSC) were included as reference). Data represents day 11 post-revival samples, n=2 replicates.

Disease-related PSEN1 is expressed in ioGlutamatergic Neurons PSEN1 M146L/WT following reprogramming

io1072_PSEN1_M146L_Het_PSEN1_RT-qPCR
io1073_io1074_PSEN1_M146L_Het_PSEN1-RT-qPCR

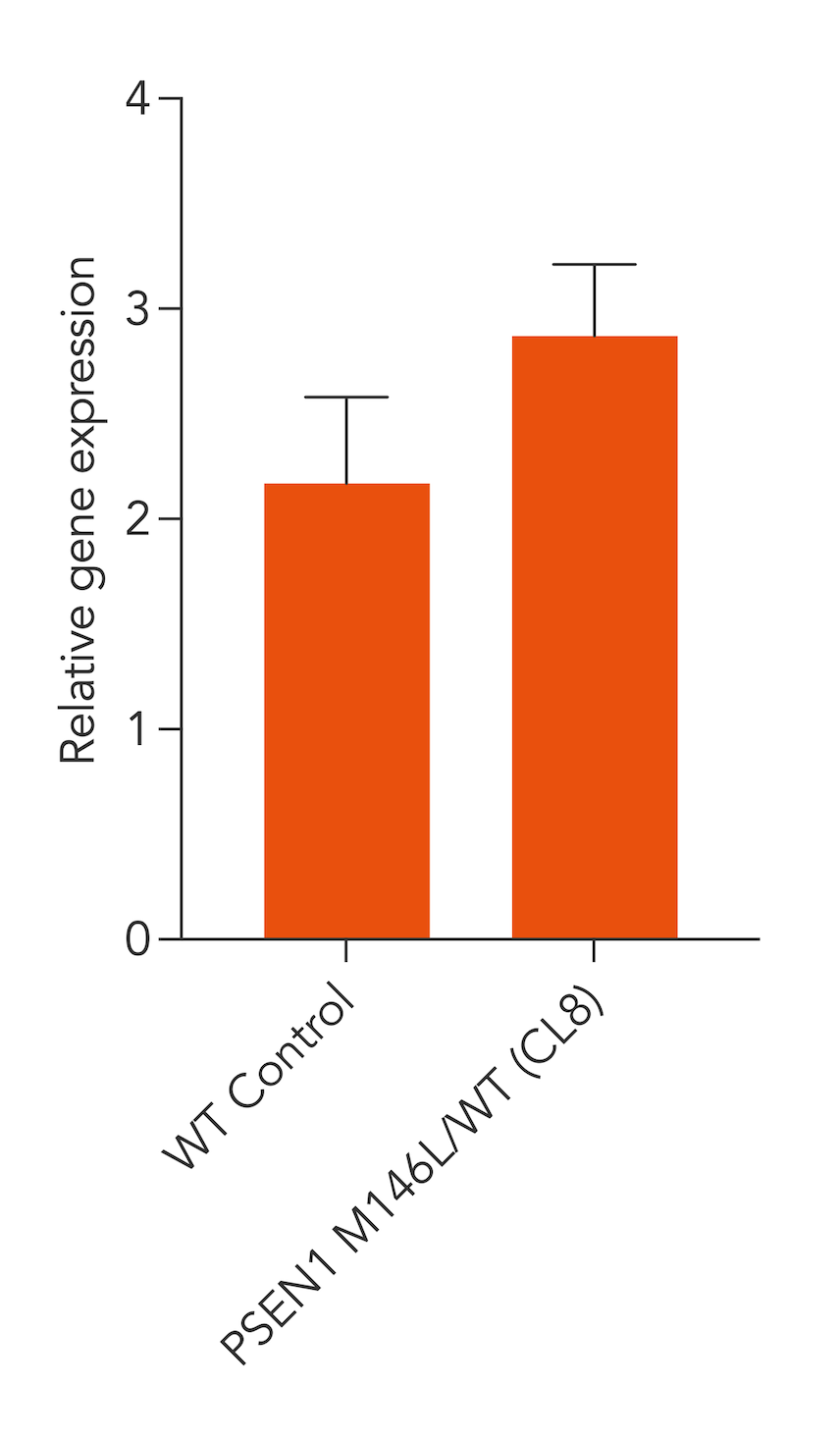

RT-qPCR analysis demonstrates a similar expression level of the PSEN1 gene in both wild type ioGlutamatergic Neurons (WT Control) and ioGlutamatergic Neurons PSEN1 M146L/WT clones at day 11 post-revival. Data normalised to HMBS, n=2 replicates.

Cells arrive ready to plate

ioGlutamatergic_Neurons_and_disease_models_timeline

ioGlutamatergic Neurons PSEN1 M146L/WT are delivered in a cryopreserved format and are programmed to mature rapidly upon revival in the recommended media. The protocol for the generation of these cells is a two-phase process: Phase 1, Stabilisation for 4 days; Phase 2, Maintenance, during which the neurons mature. Phases 1 and 2 after revival of cells are carried out by the customer.

Industry leading seeding density

ioGlutamatergic_Neurons_seeding_density_small_96_384

The recommended minimum seeding density is 30,000 cells/cm2, compared to up to 250,000 cells/cm2 for other similar products on the market. One small vial can plate a minimum of 0.7 x 24-well plate, 1 x 96-well plate, or 1.5 x 384-well plates. This means every vial goes further, enabling more experimental conditions and more repeats, resulting in more confidence in the data.

Product information

Starting material

Human iPSC line

Karyotype

Normal (46, XY)

Seeding compatibility

6, 12, 24, 96 & 384 well plates

Shipping info

Dry ice

Donor

Caucasian adult male (skin fibroblast)

Vial size

Small: >1 x 10⁶ viable cells

Quality control

Sterility, protein expression (ICC), gene expression (RT-qPCR) and genotype validation (Sanger sequencing)

Differentiation method

opti-ox cellular reprogramming

Recommended seeding density

30,000 cells/cm²

User storage

LN2 or -150°C

Format

Cryopreserved cells

Genetic modification

Heterozygous M146L missense mutation in the PSEN1 gene

Applications

Alzheimer's disease research
Drug discovery and development
Disease modelling

Available clones

io1072 | PSEN1 M146L/WT (CL8)
io1073 | PSEN1 M146L/WT (CL60)
io1074 | PSEN1 M146L/WT (CL71)

Product use

ioCells are for research use only

Product resources

Generation and characterisation of a panel of human iPSC-derived neurons and microglia carrying early and late onset relevant mutations for Alzheimer’s disease Poster
Generation and characterisation of a panel of human iPSC-derived neurons and microglia carrying early and late onset relevant mutations for Alzheimer’s disease
Smith et al.
bit.bio
2024
Downlaod
ioGlutamatergic Neurons Wild Type and related disease models | User Manual User manual
ioGlutamatergic Neurons Wild Type and related disease models | User Manual

V9

bit.bio

2024

Download
Generating publishable neuroscience research in 12 weeks with ioGlutamatergic Neurons™ Case study
Generating publishable neuroscience research in 12 weeks with ioGlutamatergic Neurons™

Professor Deepak Srivastava

Professor of Molecular Neuroscience and Group Leader, MRC Centre for Developmental Disorders

King’s College London

Download
Running Large-Scale CRISPR Screens in Human Neurons Webinar
Running Large-Scale CRISPR Screens in Human Neurons

Emmanouil Metzakopian | Vice President, Research and Development | bit.bio

Javier Conde-Vancells | Director Product Management | bit.bio

Watch now
3D bioprinting of iPSC neuron-astrocyte coculture Publication
3D bioprinting of iPSC neuron-astrocyte coculture

Whitehouse, et al
JoVE Journal of Visualized Experiments
2023

Using ioGlutamatergic Neurons

Read more
Addressing the Reproducibility Crisis | Driving Genome-Wide Consistency in Cellular Reprogramming Webinar
Addressing the Reproducibility Crisis | Driving Genome-Wide Consistency in Cellular Reprogramming

Dr Ania Wilczynska | Head of Computational Genomics | Non-Clinical | bit.bio

Watch now
Industrialising Cellular Reprogramming: Leveraging opti-ox™ Technology to Manufacture Human Cells with Unprecedented Consistency Talk
Industrialising Cellular Reprogramming: Leveraging opti-ox™ Technology to Manufacture Human Cells with Unprecedented Consistency

Innovation showcase talk at ISSCR

Marius Wernig MD, PhD | Stanford

Mark Kotter, MD, PhD | bit.bio

Watch now
Modelling neurodegeneration: Human isogenic system to study FTD & ALS Poster
Modelling neurodegeneration: Human isogenic system to study FTD & ALS

Oosterveen, et al

bit.bio & Charles River Laboratories

2023

Download
Rethinking Developmental Biology With Cellular Reprogramming Webinar
Rethinking Developmental Biology With Cellular Reprogramming

Mark Kotter | CEO and founder | bit.bio

Marius Wernig | Professor Departments of Pathology and Chemical and Systems Biology |  Stanford University

Watch now
Precision Cellular Reprogramming for Scalable and Consistent Human Neurodegenerative Disease Models Talk
Precision Cellular Reprogramming for Scalable and Consistent Human Neurodegenerative Disease Models

Madeleine Garrett | Field Application Specialist | bit.bio

Watch now
Development and characterisation of a robust in vitro disease model to study tauopathies Poster
Development and characterisation of a robust in vitro disease model to study tauopathies

Ritsma et al

Charles River Laboratories & bit.bio

2022

Download
Validation of ALS-relevant phenotypes in precision reprogrammed iPSC-derived glutamatergic Neurons containing a TDP-43 M337V mutation. Poster
Validation of ALS-relevant phenotypes in precision reprogrammed iPSC-derived glutamatergic Neurons containing a TDP-43 M337V mutation.

Ritsma, et al

Charles River Laboratories & bit.bio

2022

Download
Rapid and consistent generation of functional microglia from reprogrammed hiPSCs to study neurodegeneration and neuroinflammation Poster
Rapid and consistent generation of functional microglia from reprogrammed hiPSCs to study neurodegeneration and neuroinflammation

Raman, et al

bit.bio

2022

Download
Developing next-generation in vitro phenotypic assays for Huntington’s disease by combining a precision reprogrammed hiPSC-derived disease model with high-density microelectrode arrays Application note
Developing next-generation in vitro phenotypic assays for Huntington’s disease by combining a precision reprogrammed hiPSC-derived disease model with high-density microelectrode arrays

bit.bio | MaxWell Biosystems | Charles River Laboratories

2022

Download
Interferon-γ exposure of human iPSC-derived neurons alters major histocompatibility complex I and synapsin protein expression | Publication Publication
Interferon-γ exposure of human iPSC-derived neurons alters major histocompatibility complex I and synapsin protein expression | Publication

Pavinlek, et al

Frontiers in Psychiatry

2022



Using ioGlutamatergic Neurons





Read more
Glutamatergic Neurons and Brain Cyst Formation | Publication Publication
Glutamatergic Neurons and Brain Cyst Formation | Publication

Bando, et al

Frontiers in Cellular and Infection Microbiology

2022



Using ioGlutamatergic Neurons





Read more

Cell culture hacks | human iPSC-derived glutamatergic neurons

Read this blog on glutamatergic neuron cell culture for our top tips on careful handling, cell plating and media changes to achieve success from the outset.

bit.bio_3x2_ioGlutamatergic Neurons_MAP2_Hoescht_x20_hi.res (1)
