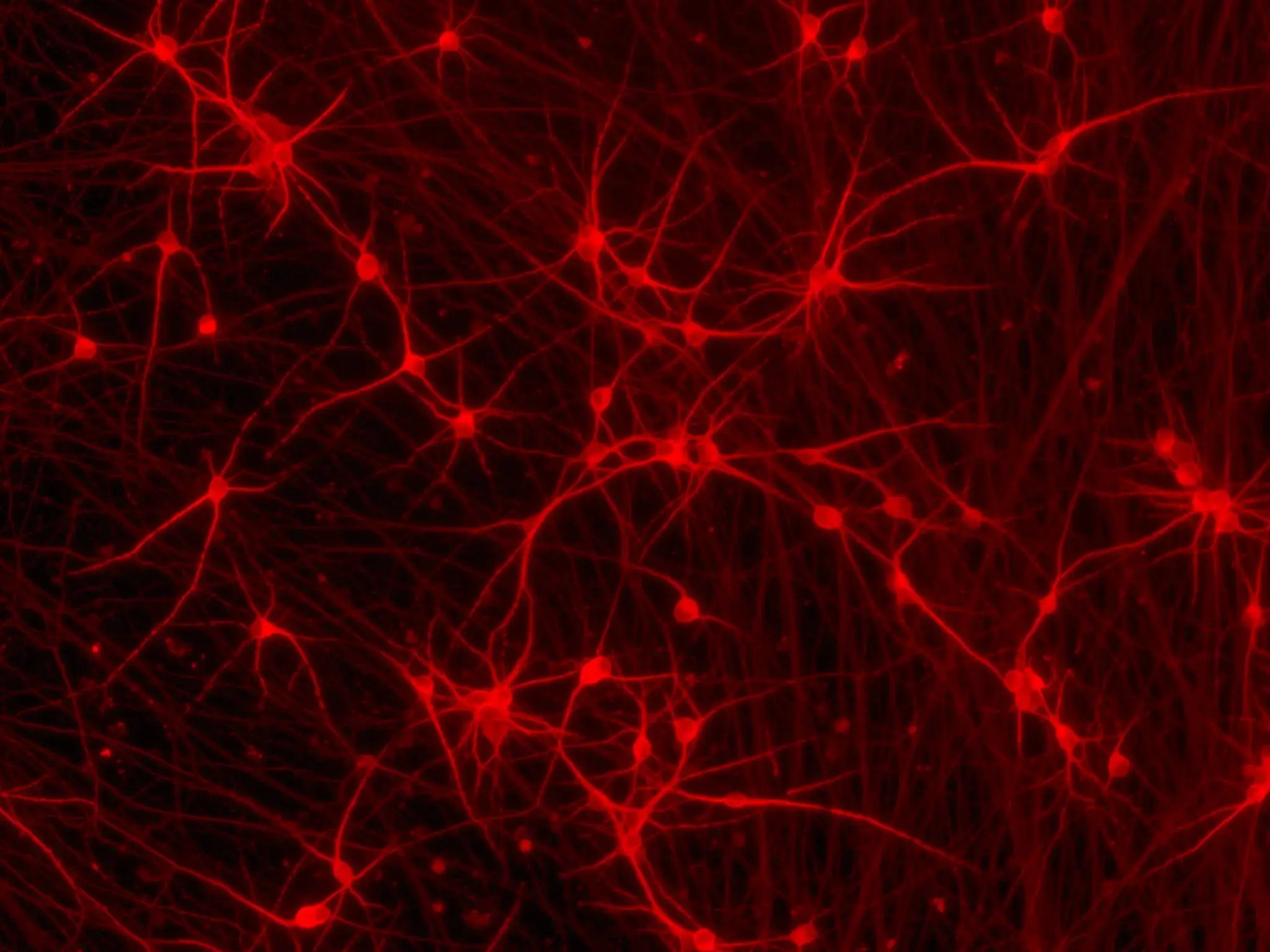

ioGlutamatergic Neurons PRKN R275W red image

cat no | io1020

ioGlutamatergic Neurons
PRKN R275W/R275W™

Human iPSC-derived Parkinson's disease model

ioGlutamatergic Neurons PRKN R275W/R275W are opti‑ox™ precision reprogrammed glutamatergic neurons carrying a genetically engineered homozygous mutation in the PRKN gene encoding the Parkin protein. These cells offer a rapidly maturing, disease relevant and isogenic system for investigating the molecular and cellular significance of a homozygous R275W mutation in Parkinson’s disease.

Related disease model cells are available now with a heterozygous PRKN R275W mutation, and both can be used alongside their genetically matched control, ioGlutamatergic Neurons™.

Request a quote
Once your quote request has been submitted, one of our sales team will be in contact.

Unsure where to start?
Get in touch and we'll guide the way!

Let's chat

Benchtop benefits

Make True Comparisons

Pair the ioDisease Model Cells with the genetically matched wild-type ioGlutamatergic Neurons to directly investigate the effect of homozygous expression of mutant Parkin protein on disease.

Scalable

With opti-ox technology, we can make billions of consistently reprogrammed cells, surpassing the demands of industrial workflows.

Quick

The disease model cells and isogenic control are experiment ready as early as 2 days post revival, and form structural neuronal networks at 11 days.

Product information

Starting material

Human iPSC line

Karyotype

Normal (46, XY)

Seeding compatibility

6, 12, 24, 48, 96 & 384 well plates

Shipping info

Dry ice

Donor

Caucasian adult male (skin fibroblast)

Vial size

Small: >1 x 10⁶ viable cells

Quality control

Sterility, protein expression (ICC), gene expression (RT-qPCR) and genotype validation (Sanger sequencing)

Differentiation method

opti-ox cellular reprogramming

Recommended seeding density

30,000 cells/cm²

User storage

LN2 or -150°C

Format

Cryopreserved cells

Genetic modification

Homozygous R275W missense mutation in the PRKN gene

Applications

Parkinson's disease research
Drug discovery and development
Disease modelling

Product use

ioCells are for research use only

Highly characterised and defined

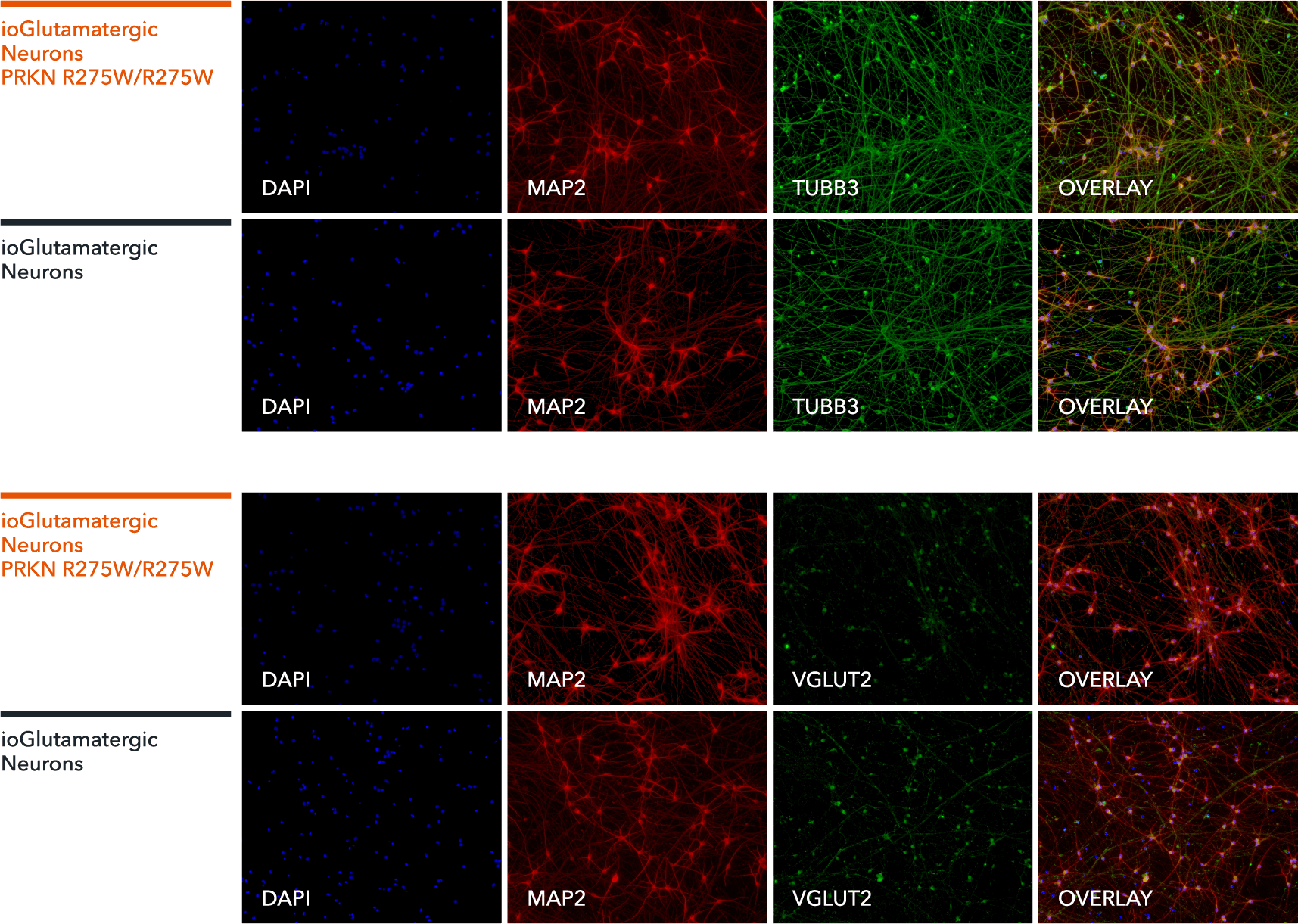

ioGlutamatergic Neurons PRKN R275W/R275W express neuron-specific markers comparably to the isogenic control

ICC showing that ioGlutamatergic Neurons PRKN R275W/R275W express pan neuronal markers

Immunofluorescent staining on post-revival day 11 demonstrates similar homogenous expression of pan-neuronal proteins TUBB3 and MAP2 (upper panel) and glutamatergic neuron-specific transporter VGLUT2 (lower panel) in ioGlutamatergic Neurons PRKN R275W/R275W compared to the isogenic control. 100X magnification.

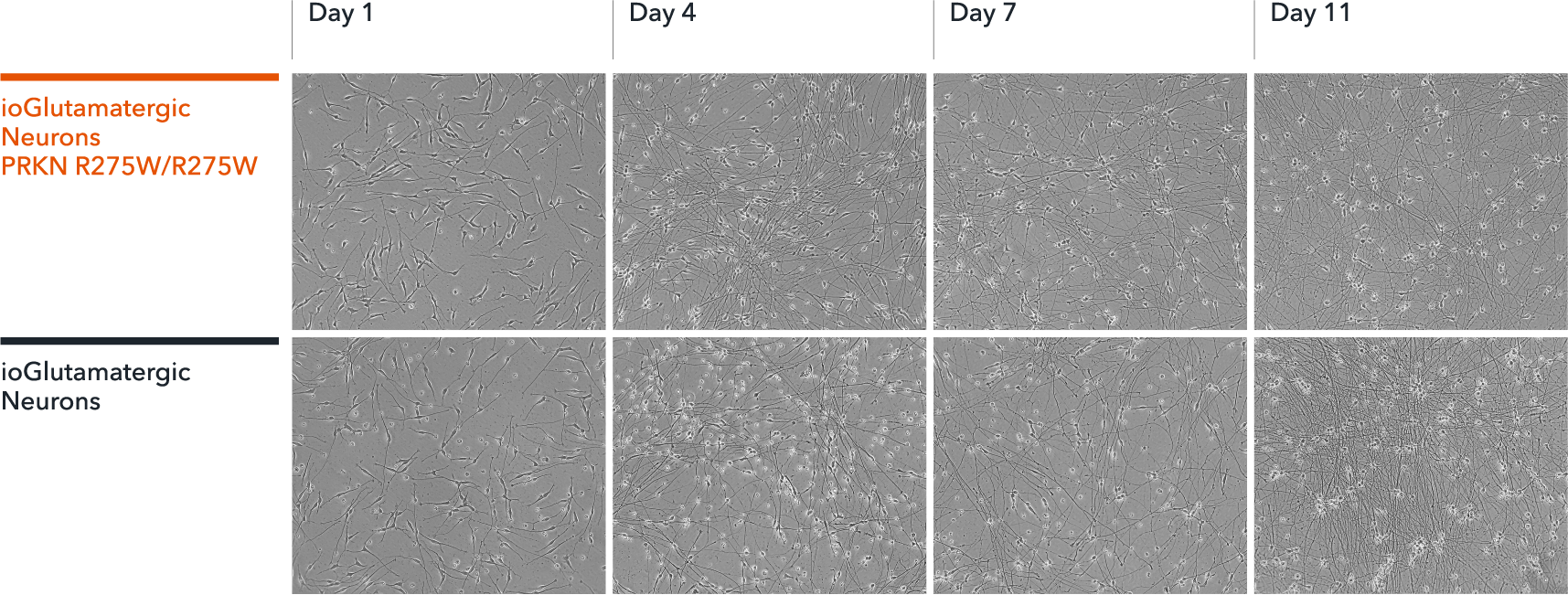

ioGlutamatergic Neurons PRKN R275W/R275W form structural neuronal networks by day 11

Incucyte imaging of ioGlutamatergic Neurons PRKN R275W/WT over 11 days, showing the cells form structural neuronal networks

ioGlutamatergic Neurons PRKN R275W/R275W mature rapidly and form structural neuronal networks over 11 days, when compared to the isogenic control. Day 1 to 11 post thawing; 100X magnification.

ioGlutamatergic Neurons PRKN R275W/R275W demonstrate gene expression of neuronal and glutamatergic-specific markers following reprogramming

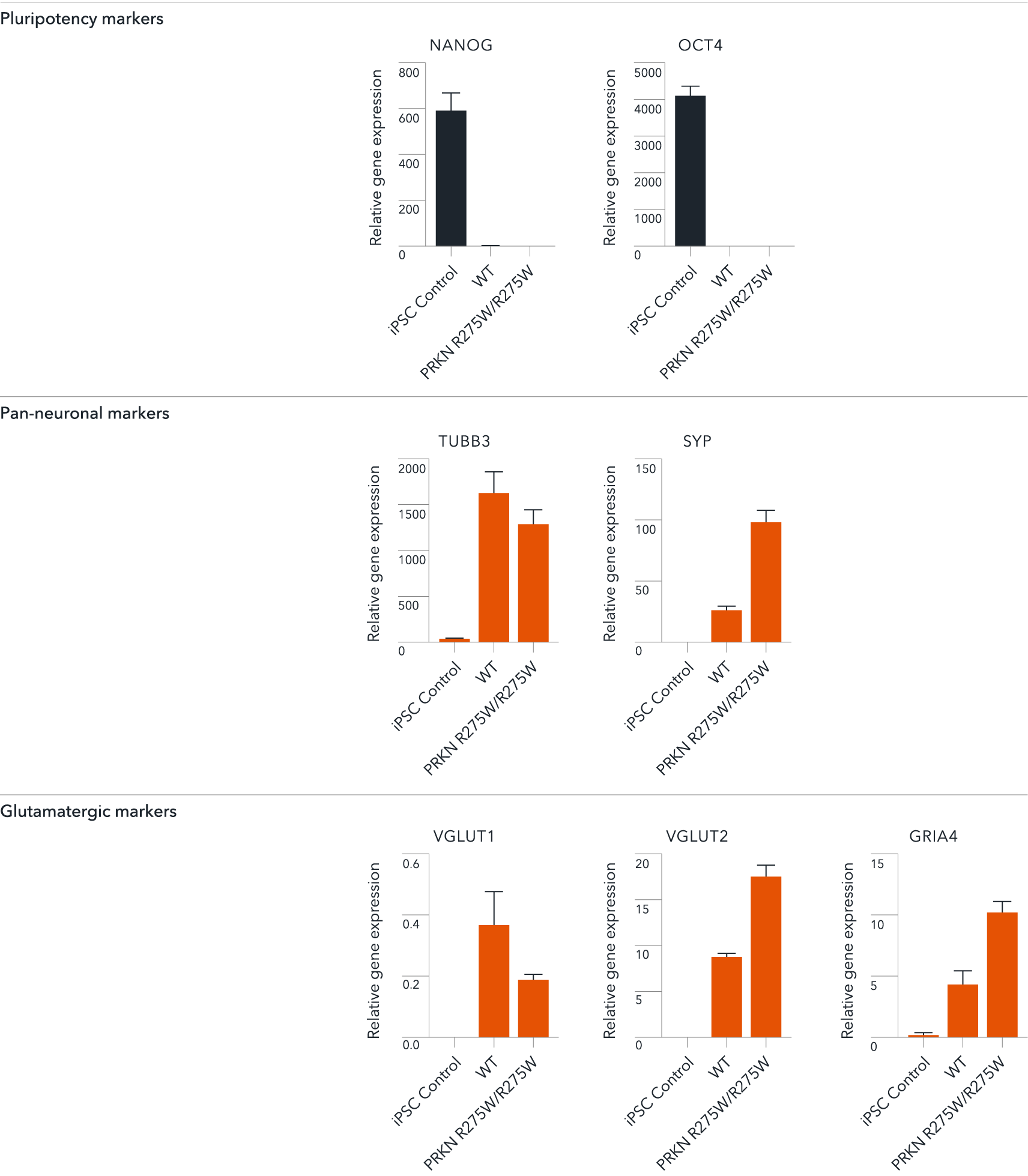

RT-qPCR of ioGlutamatergic Neurons PRKN R275W hom showing expression of pan neuronal and glutamatergic markers

Gene expression analysis demonstrates that ioGlutamatergic Neurons PRKN R275W/R275W and the isogenic control (WT) lack the expression of pluripotency markers (NANOG and OCT4) at day 11, whilst robustly expressing pan-neuronal (TUBB3 and SYP) and glutamatergic specific (VGLUT1 and VGLUT2) markers, as well as the glutamate receptor GRIA4. Gene expression levels were assessed by RT-qPCR (data expressed relative to the parental hiPSC control (iPSC Control), normalised to HMBS). Data represents day 11 post-revival samples.

Disease-related PRKN is expressed in ioGlutamatergic Neurons PRKN R275W/R275W following reprogramming

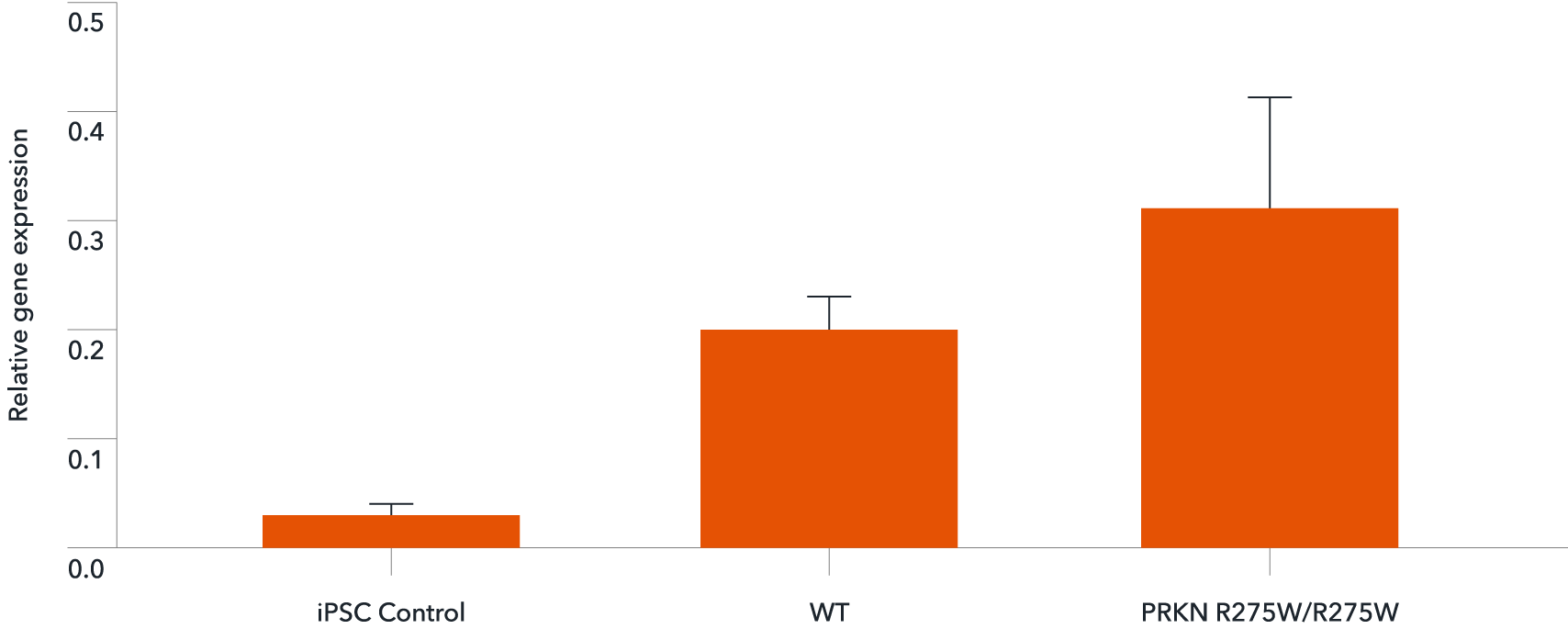

ioGlutamatergic_neurons-PRKN-R275W-R275W-rt-qPCR-PRKN2

Gene expression analysis demonstrates that ioGlutamatergic Neurons PRKN R275W/R275W and the isogenic control (WT) express the PRKN gene encoding the Parkin protein. Gene expression levels were assessed by RT-qPCR (data expressed relative to the parental hiPSC control (iPSC Control), normalised to HMBS). Data represents day 11 post-revival samples.

Cells arrive ready to plate

PRKN R275W/R275W arrive ready to plate and are experiment ready in days

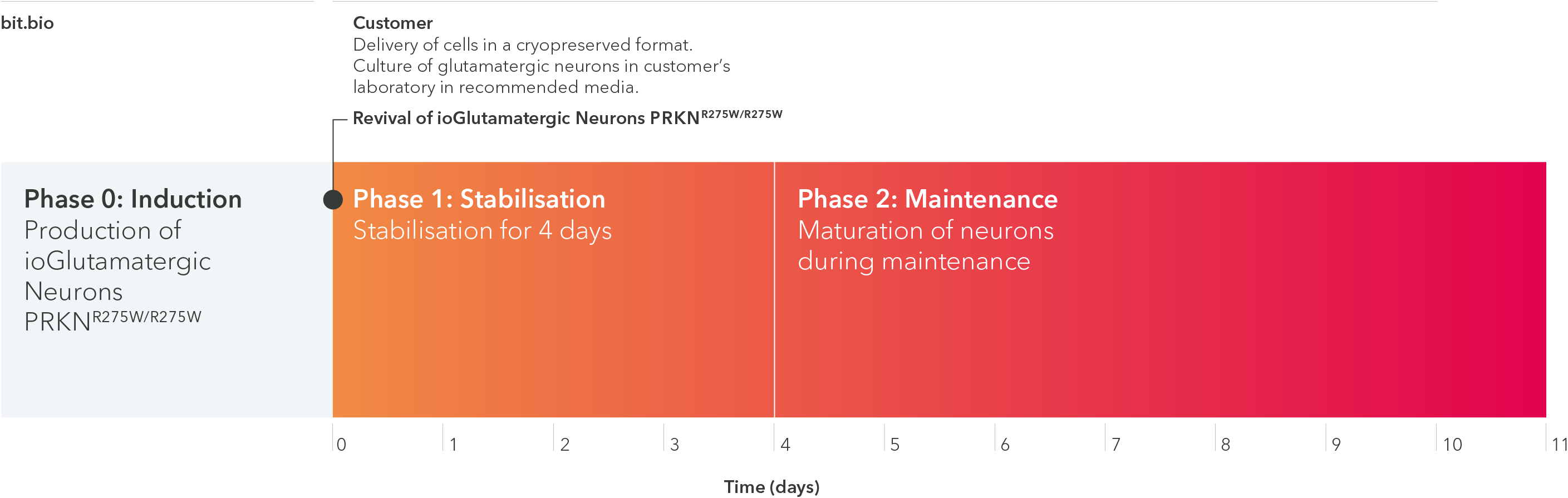

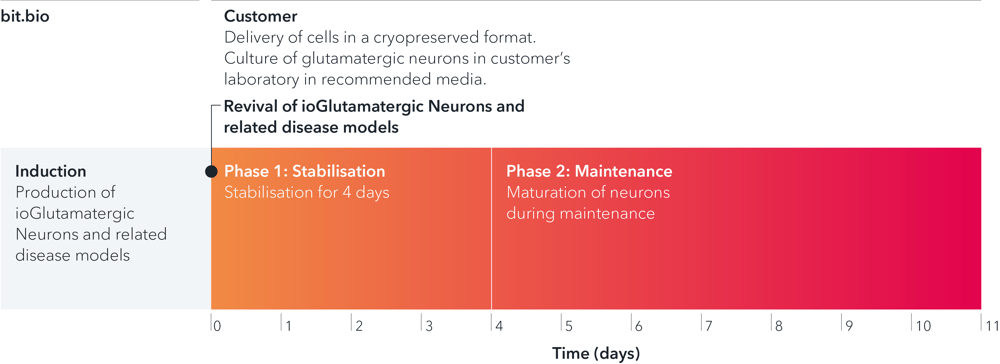

ioGlutamatergic Neurons PRKN R275W/R275W are delivered in a cryopreserved format and are programmed to rapidly mature upon revival in the recommended media. The protocol for the generation of these cells is a three-phase process: Induction, which is carried out at bit.bio (Phase 0), Stabilisation for 4 days (Phase 1), and Maintenance (Phase 2) during which the ioGlutamatergic Neurons PRKN R275W/R275W mature. Phases 1 and 2 after revival of cells are carried out by the customer.

Industry leading seeding density

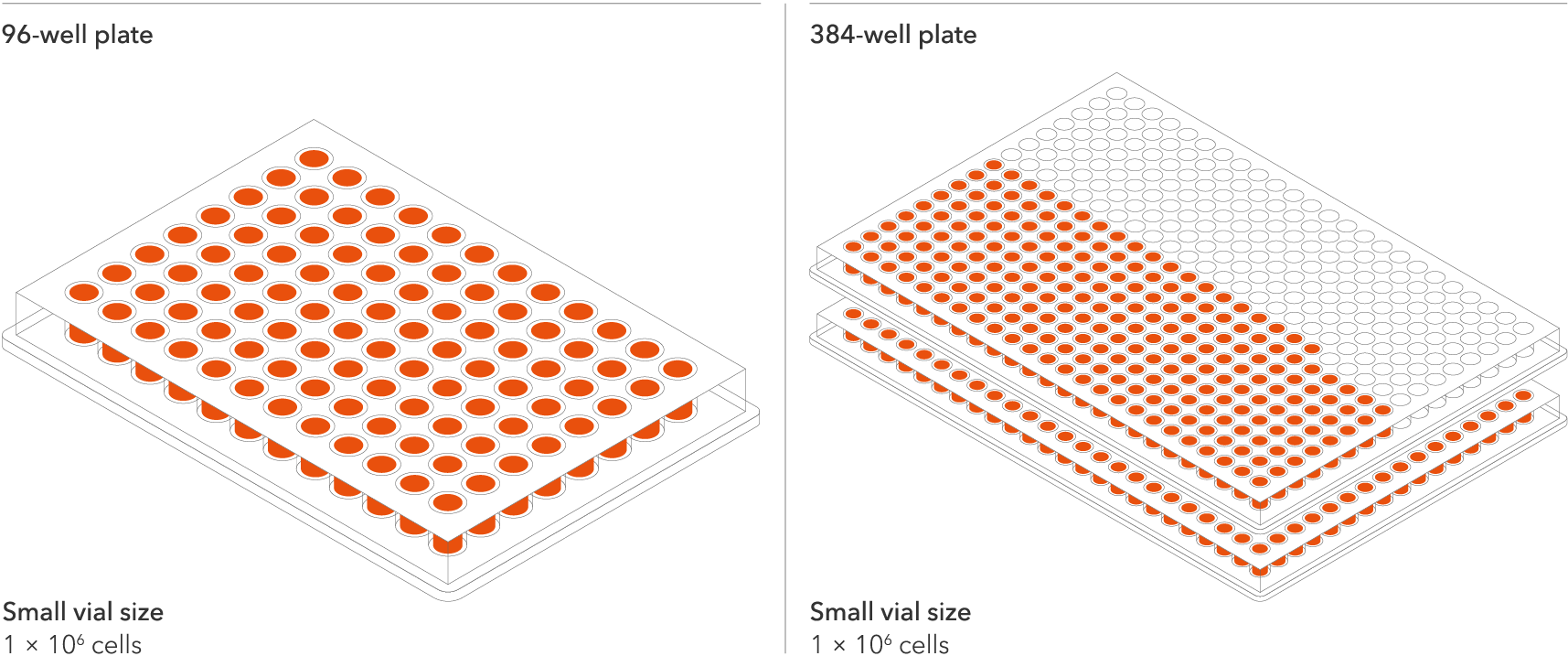

ioGlutamatergic Neurons PRKN R275W/R275W are compatible with plates ranging from 6 to 384 wells and are available in two vial sizes, tailored to suit your experimental needs with minimal waste.

The recommended seeding density is 30,000 cells/cm², compared to up to 500,000 cells/cm² for other available products on the market.

One small vial can plate a minimum of 0.7 x 24-well plate, 1 x 96-well plate, or 1.5 x 384-well plate. One Large vial can plate a minimum of 3.6 x 24-well plate, 5.4 x 96-well plate, or 7.75 x 384-well plates.
