Hero-PINK1-Q456X-Hom_ICC_DAPI_MAP2

cat no | io1075, io1076

ioGlutamatergic Neurons PINK1 Q456X/Q456X

Human iPSC-derived Parkinson's disease model

ioGlutamatergic Neurons PINK1 Q456X/Q456X are opti‑ox deterministically programmed glutamatergic neurons carrying a genetically engineered homozygous Q456X mutation in the PINK1 gene encoding the protein PTEN induced putative kinase 1. These cells offer a rapidly maturing, disease relevant system for investigating the role of PINK1 Q456X mutation in early-onset Parkinson's disease (PD).

Place your order

Confidently investigate your phenotype of interest across multiple clones with our disease model clone panel. Detailed characterisation data (below) and bulk RNA sequencing data (upon request) help you select specific clones if required.

per vial

Benchtop benefits

comparison_0

Make True Comparisons

Pair the ioDisease Model Cells with the genetically matched wild-type ioGlutamatergic Neurons to investigate the impact of the PINK1 nonsense mutation on early-onset PD.

scalable_0

Scalable

With opti-ox technology, we can make billions of consistently deterministically programmed cells, surpassing the demands of industrial workflows.

quick_0

Quick

The disease model cells and isogenic control are experiment ready as early as 2 days post revival, and form structural neuronal networks at 11 days.

Technical data

Highly characterised and defined

ioGlutamatergic Neurons PINK1 Q456X/Q456X express neuron-specific markers comparably to the wild type control
io1075-io1076-ioGlutamatergic Neurons PINK1-Q456X-hom-ICC-MAP2-TUBB3
io1075-io1076-ioGlutamatergic Neurons PINK1-Q456X-hom-ICC-MAP2-VGLUT2

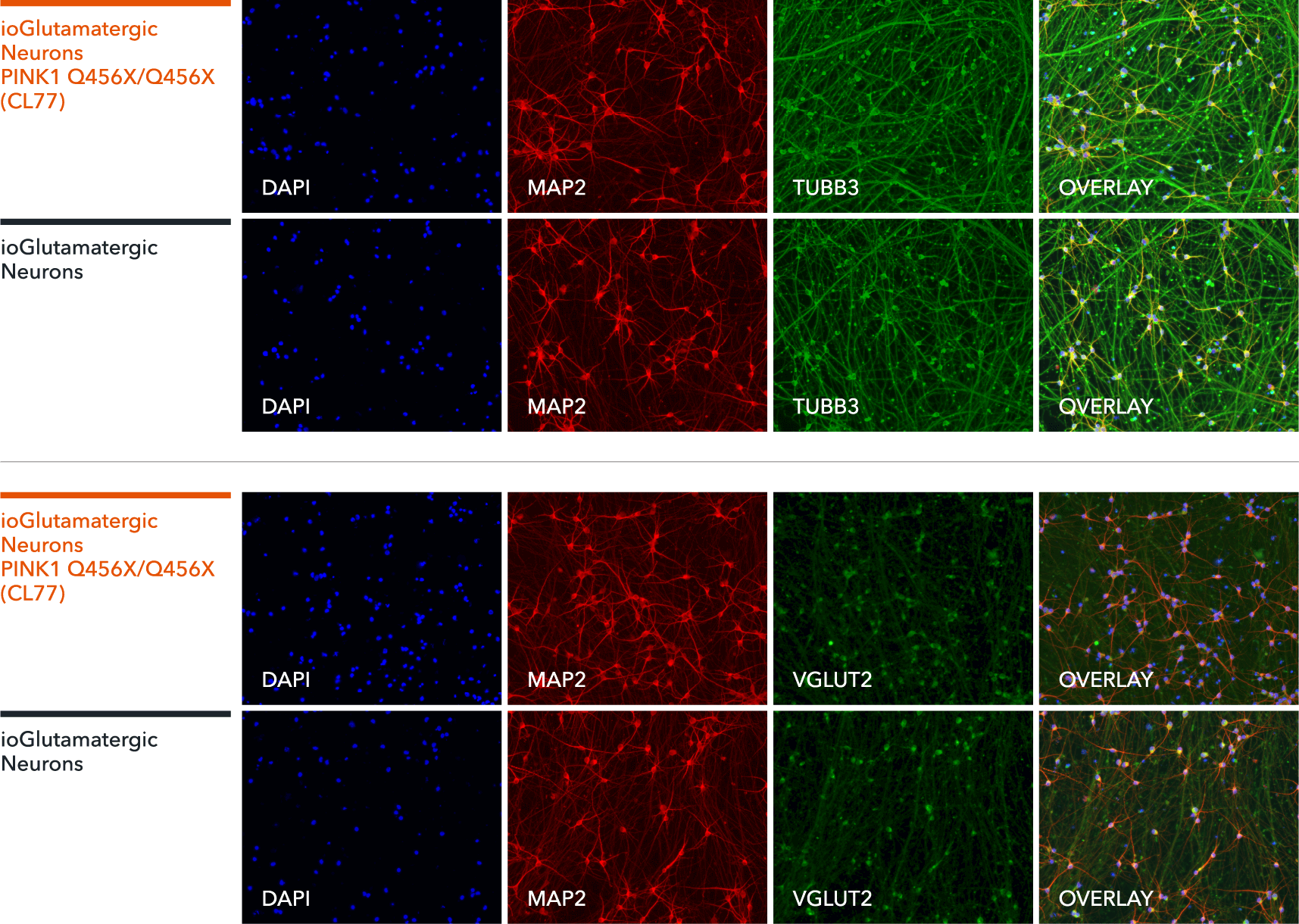

Immunofluorescent staining on post-revival day 11 demonstrates similar homogenous expression of pan-neuronal proteins MAP2 and TUBB3 (left tab) and glutamatergic neuron-specific transporter VGLUT2 (right tab) in ioGlutamatergic Neurons PINK1 Q456X/Q456X clones compared to the genetically matched control. 100X magnification.
ioGlutamatergic Neurons PINK1 Q456X/Q456X form structural neuronal networks by day 11

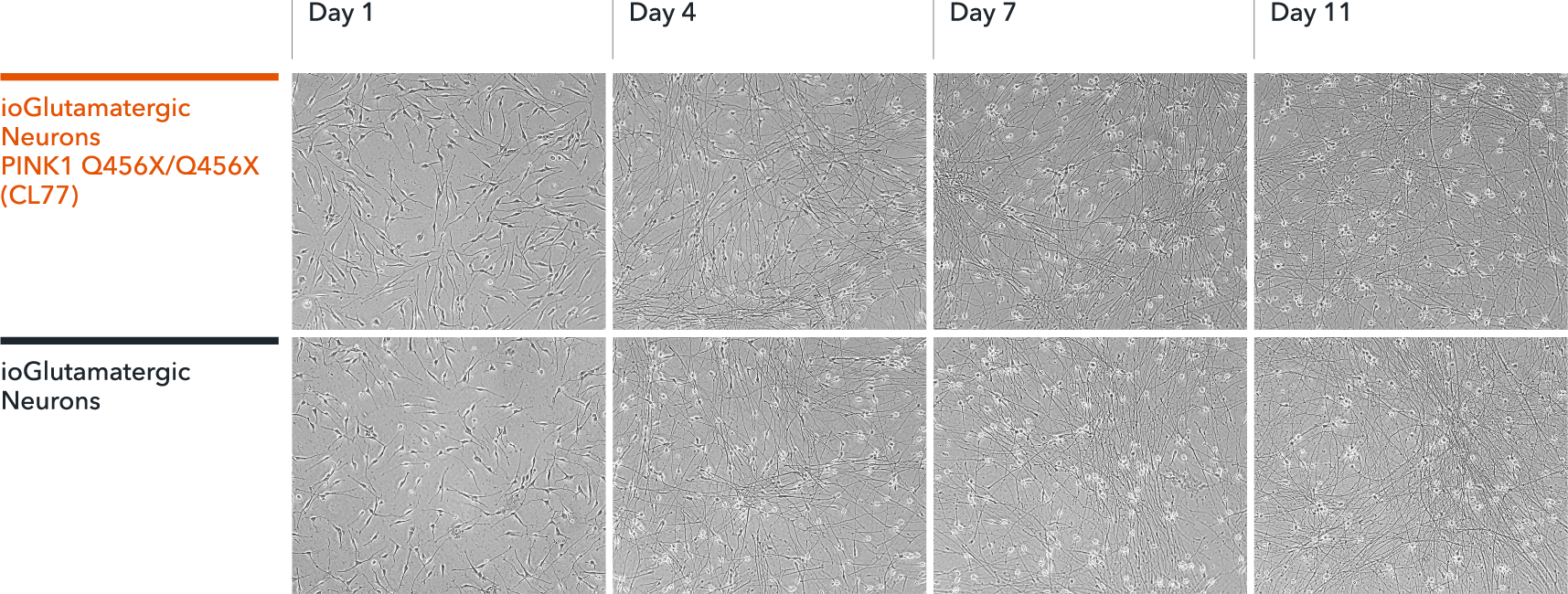

io1075-io1076-ioGlutamatergic Neurons PINK1-Q456X-hom-Morphology
ioGlutamatergic Neurons PINK1 Q456X/Q456X clones mature rapidly and form structural neuronal networks over 11 days, highly similar to the genetically matched control. Day 1 to 11 post thaw; 100X magnification.
ioGlutamatergic Neurons PINK1 Q456X/Q456X demonstrate gene expression of neuronal-specific and glutamatergic-specific markers following deterministic programming

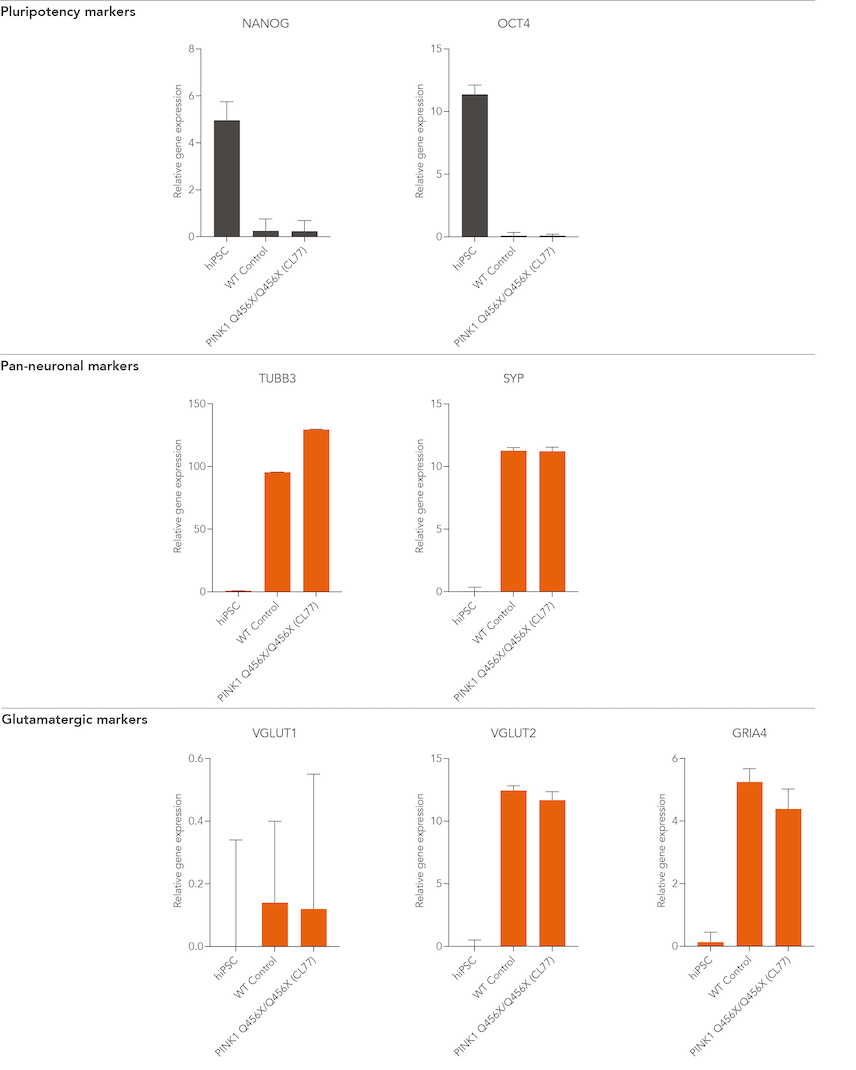

io1075-io1076_PINK-Q456X-Hom_RT-qPCR
Gene expression analysis demonstrates that ioGlutamatergic Neurons PINK1 Q456X/Q456X clones and wild-type ioGlutamatergic Neurons (WT Control) lack the expression of pluripotency markers (NANOG and OCT4) at day 11, while expressing pan-neuronal (TUBB3 and SYP) and glutamatergic-specific (VGLUT1 and VGLUT2) markers, as well as the glutamate receptor GRIA4. Gene expression levels were assessed by RT-qPCR (data normalised to HMBS; cDNA samples of the parental human iPSC line (hiPSC) were included as reference). Data represents day 11 post-revival samples, n=2 replicates.
Disease-related PINK1 is expressed in ioGlutamatergic Neurons PINK1 Q456X/Q456X following deterministic programming

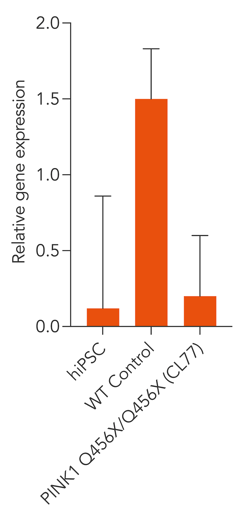

io1075-io1076_PINK-Q456X-Hom-PINK1-RT-qPCR
RT-qPCR analysis demonstrates expression of the PINK1 gene in both wild type ioGlutamatergic Neurons (WT Control) and ioGlutamatergic Neurons PINK1 Q456X/Q456X clones at day 11 post-revival. Data normalised to HMBS, n=2 replicates.

Cells arrive ready to plate

ioGlutamatergic_Neurons_and_disease_models_timeline
ioGlutamatergic Neurons PINK1 Q456X/Q456X are delivered in a cryopreserved format and are programmed to mature rapidly upon revival in the recommended media. The protocol for the generation of these cells is a two-phase process: Phase 1, Stabilisation for 4 days; Phase 2, Maintenance, during which the neurons mature. Phases 1 and 2 after revival of cells are carried out by the customer.

Industry leading seeding density

ioGlutamatergic_Neurons_seeding_density_small_96_384
The recommended minimum seeding density is 30,000 cells/cm2, compared to up to 250,000 cells/cm2 for other similar products on the market. One small vial can plate a minimum of 0.7 x 24-well plate, 1 x 96-well plate, or 1.5 x 384-well plates. This means every vial goes further, enabling more experimental conditions and more repeats, resulting in more confidence in the data.

Product information

Starting material

Human iPSC line

Karyotype

Normal (46, XY)

Seeding compatibility

6, 12, 24, 96 & 384 well plates

Shipping info

Dry ice

Donor

Caucasian adult male (skin fibroblast)

Vial size

Small: >1 x 10⁶ viable cells

Quality control

Sterility, protein expression (ICC), gene expression (RT-qPCR) and genotype validation (Sanger sequencing)

Differentiation method

opti-ox deterministic cell programming

Recommended seeding density

30,000 cells/cm²

User storage

LN2 or -150°C

Format

Cryopreserved cells

Genetic modification

Homozygous Q456X nonsense mutation in the PINK1 gene

Applications

Parkinson's disease research
Drug discovery and development
Disease modelling

Available clones

io1075 | PINK1 Q456X/Q456X (CL49)
io1076 | PINK1 Q456X/Q456X (CL77)

Product use

ioCells are for research use only
