Introduction

Microglia, as residents of the central nervous system, thrive in a complex and heterogeneous environment that is populated with neurons and glial cells. In their capacity as brain-resident immune cells, microglia play a critical role in responding to tissue damage and infection through the release of cytokines and phagocytosis of pathogens.

There is a need for functional and consistent human microglia for neuroimmune research and drug development for neurodegenerative diseases. Current models have constraints such as limitations in supply, complex protocols, or lot variability. All which raise challenges for drug discovery due to the generation of unreliable data and long experimental timelines.

ioMicroglia are human induced pluripotent stem cell (iPSC)-derived microglia, precision reprogrammed using opti-ox™ technology. At 10 days post-revival, they demonstrate maturity reminiscent of primary adult and foetal microglia. Functionally, ioMicroglia secrete proinflammatory and antiinflammatory cytokines (IL-6, TNFα, IL-1b, IL-12p70, IL-8, and IL-10)  in response to stimuli such as Lipopolysaccharides (LPS) and Interferon Gamma (IFNγ). The protocol depicted below outlines general guidelines for stimulating cytokine release.

The following protocol recommends...-1

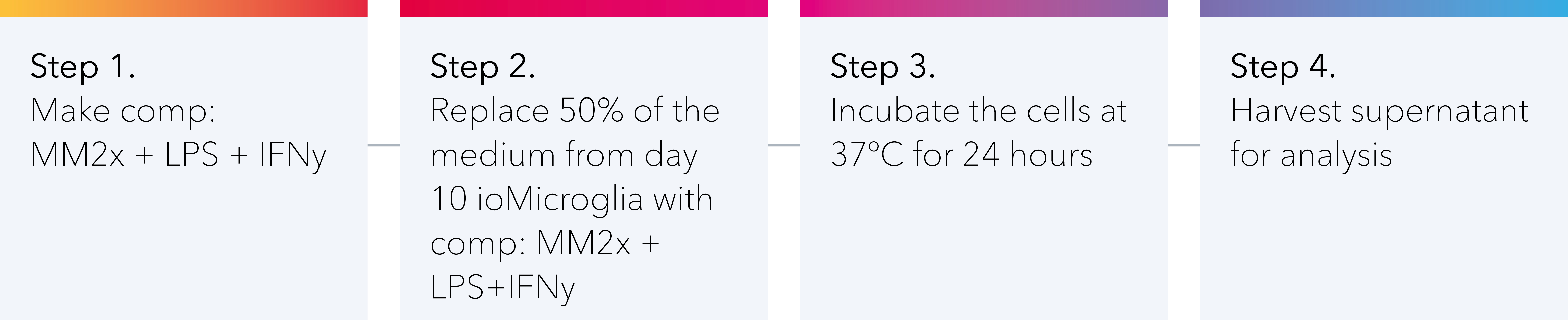

Protocol overview

Simulation of cytokines bit_bio-workflow_protocol-v5-1

Materials and equipment

  • ioMicroglia cells (cat no: ioA021) cultured to day 10 in a 96-well plate seeded at 37,000 cells/cm2 (200µL/well)

  • comp:MM2x medium – as described in the ioMicroglia user manual

  • comp:MM2x+LPS+IFNγ medium – as described in Appendix 1

  • 96-well U bottom plates

  • Adhesive film

  • LPS (50µg/mL)

  • IFNγ (50µg/mL)

  • Biological safety cabinet

  • Standard tissue culture wares (pipettes, tips, culture plates)

  • Normoxic cell culture incubator (37°C, 5% CO2)

  • Vortex

Please request the ioMicroglia user manual from technical@bit.bio if required.

Protocol

The protocol is divided into two sections: Treatment of cells with LPS and IFNγ; and harvesting of cell supernatants for cytokine readout

1. Treatment of cells with LPS and IFNγ

1.1. Add comp:MM2x+LPS+IFNγ medium and comp:MM2x medium to separate reagent reservoirs.

1.2. Remove 100µL of expended culture medium from each well.

1.3. Add 100µL of the comp:MM2x+LPS+IFNγ medium to the treatment wells, for a final volume of 200µL.

1.4. Add 100µL of fresh, pre-warmed comp:MM2x medium to the control wells.

1.5. Incubate plates for 24 hours in an incubator at 37°C, 5% CO2.


2. Harvesting of cell supernatants for cytokine readout

2.1. After the 24 hour incubation, remove plates from the incubator and transfer them to a biological safety cabinet.

2.2. Gently transfer 100µL of the medium from the culture plates to a fresh 96-well U bottom plate.

2.3. Cover with adhesive film and transfer to the -20°C freezer until ready to analyse on an Meso Scale Discovery (MSD) or ELISA based assay system.

Note: bit.bio uses an MSD system and examines the following cytokines: IL-6, TNFα, IL-1b, IL-12p70, IL-8, and IL-10.

Optional: The attached cells may be fixed for analysis via immunofluorescent staining at a later date.

Appendix 1

Preparation of comp:MM2x+LPS+IFNγ medium

1. Dilute 10µL LPS stock (50µg/mL) in 90µL of comp:MM2x medium.

2. Dilute 10µL IFNγ stock (50µg/mL) in 90µL of comp:MM2x medium.

3. Use the diluted reagents to prepare comp:MM2x+LPS+IFNγ medium as indicated in Table 1 (make 100µL per test well plus an excess ~10% for volume loss).

4. Vortex the comp:MM2x+LPS+IFNγ medium for 5 seconds.

Table 1: Preparation of comp:MM2x+LPS+IFNγ medium

Reagent

Stock concentration Final concentration comp:MM2x+LPS+IFNγ (for 1000µL)

comp:MM2x medium

-

-

976µL

Diluted LPS

5µg/ml

20ng/ml

4µL

Diluted IFNγ

5µg/ml

100ng/ml

20µL



Application support

If you have any questions or need assistance, please reach out to technical@bit.bio and we will do our best to support you.

Published February 2023
