N279K MAP2 brightfield compressed rotated

cat no | io1009

ioGlutamatergic Neurons
MAPT N279K/WT

Human iPSC-derived FTD disease model

A rapidly maturing, consistent and scalable isogenic system to study frontotemporal dementia (FTD).

ioGlutamatergic Neurons MAPT N279K/WT are opti-ox™ precision reprogrammed glutamatergic neurons carrying a genetically engineered heterozygous N279K mutation in the MAPT gene encoding the tau protein.



Request a quote >



Place your order

Confidently investigate your phenotype of interest across multiple clones with our disease model clone panel. Detailed characterisation data (below) and bulk RNA sequencing data (upon request) help you select specific clones if required.

per vial

Add to basket

Click here for bulk request

Benchtop benefits

phenotype_0

Disease related phenotype

High content ICC image analysis shows hyperphosphorylation of tau compared to the wild-type control.

comparison_0

Make True Comparisons

Pair the ioDisease Model Cells with the genetically matched wild-type ioGlutamatergic Neurons to directly investigate the impact of mutant tau protein on disease.

quick_0

Quick

The disease model cells and isogenic control are experiment ready as early as 2 days post revival, and form structural neuronal networks at 11 days.

Technical data

Disease-related phenotype

Hyperphosphorylation of tau observed in the disease model cells compared to the isogenic control
Hyperphosphorylation of tau in glutamatergic neurons FTD disease model cells carrying MAPT P301S or N279K mutation

ioGlutamatergic Neurons disease model cells carrying MAPT P301S/P301S, MAPT N279K/WT and MAPT N279K/N279K mutations show hyperphosphorylation when compared to the isogenic control ioGlutamatergic Neurons (WT) at day 21. The bar graphs show total Tau, pTau217/total Tau, pTau202/5/total Tau or pTau404/total Tau in cell bodies, analysed by immunocytochemistry. Statistical analyses performed on 5 cellular replicates in the same plate. Bars showing mean, error bars showing Standard Deviation. Statistics calculated by one way ANOVA and Tukey posthoc analysis. Data courtesy of Charles River Laboratories.

Highly characterised and defined

ioGlutamatergic Neurons MAPT N279K/WT express neuron-specific markers comparably to the isogenic control

ioGlutamatergic neurons MAPT N279K WT ICC

Immunofluorescent staining on post-revival day 11 demonstrates similar homogenous expression of pan-neuronal proteins MAP2 and TUBB3 (upper panel) and glutamatergic neuron-specific transporter VGLUT2 (lower panel) in ioGlutamatergic Neurons MAPT N279K/WT compared to the isogenic control. 100X magnification.

ioGlutamatergic Neurons MAPT N279K/WT form structural neuronal networks by day 11

ioGlutamatergic_neurons-MAPT-N279K-WT-Morphology compressed

ioGlutamatergic Neurons MAPT N279K/WT mature rapidly and form structural neuronal networks over 11 days, when compared to the isogenic control. Day 1 to 11 post thaw; 100X magnification.

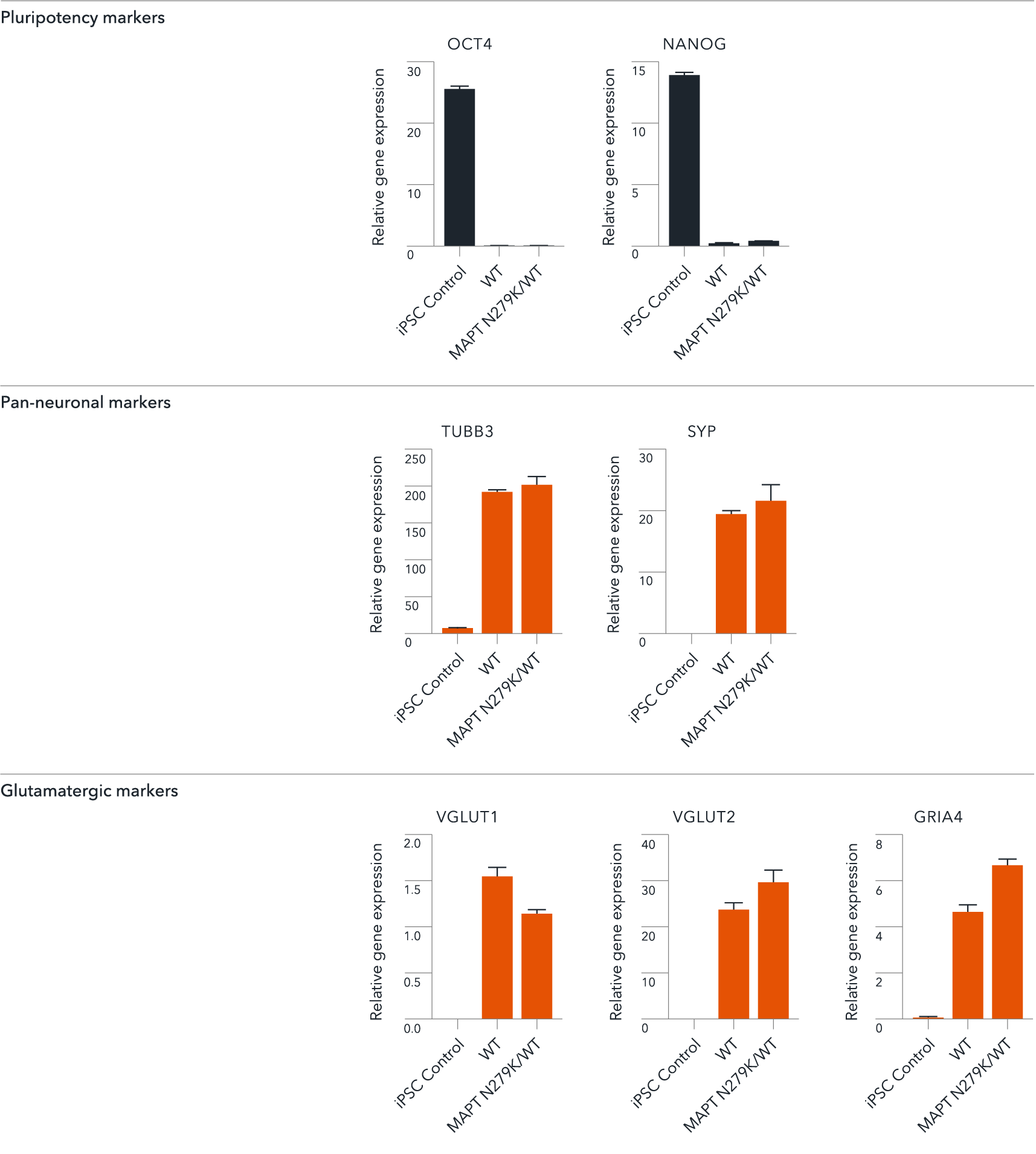

ioGlutamatergic Neurons MAPT N279K/WT demonstrate gene expression of neuronal-specific and glutamatergic-specific markers following reprogramming

ioGlutamatergic neurons MAPT N279K WT rt-qPCR

Gene expression analysis demonstrates that ioGlutamatergic Neurons MAPT N279K/WT and the isogenic control (WT) lack the expression of pluripotency markers (NANOG and OCT4) at day 11, whilst robustly expressing pan-neuronal (TUBB3 and SYP) and glutamatergic specific (VGLUT1 and VGLUT2) markers, as well as the glutamate receptor GRIA4. Gene expression levels were assessed by RT-qPCR. Data is shown relative to the parental hiPSC control (iPSC Control), normalised to HMBS. Data represents day 11 post-revival samples; n=2 biological replicates

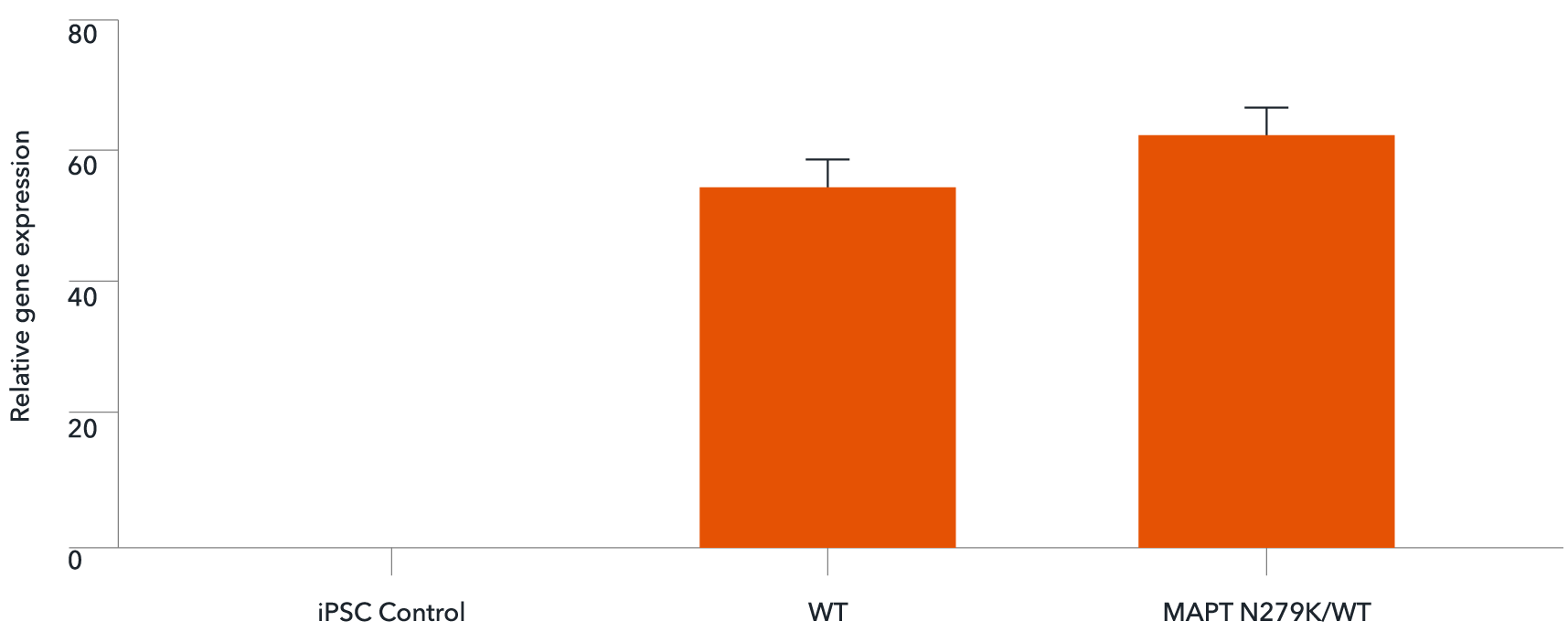

Disease-related MAPT is expressed in ioGlutamatergic Neurons MAPT N279K/WT following reprogramming

ioGlutamatergic neurons MAPT N279K WT rt-qPCR of MAPT

Gene expression analysis demonstrates that ioGlutamatergic Neurons MAPT N279K/WT and the isogenic control (WT) express the MAPT gene encoding the tau protein. Gene expression levels were assessed by RT-qPCR (data expressed relative to the parental hiPSC control (iPSC Control), normalised to HMBS). Data represents day 11 post-revival samples.

Cells arrive ready to plate

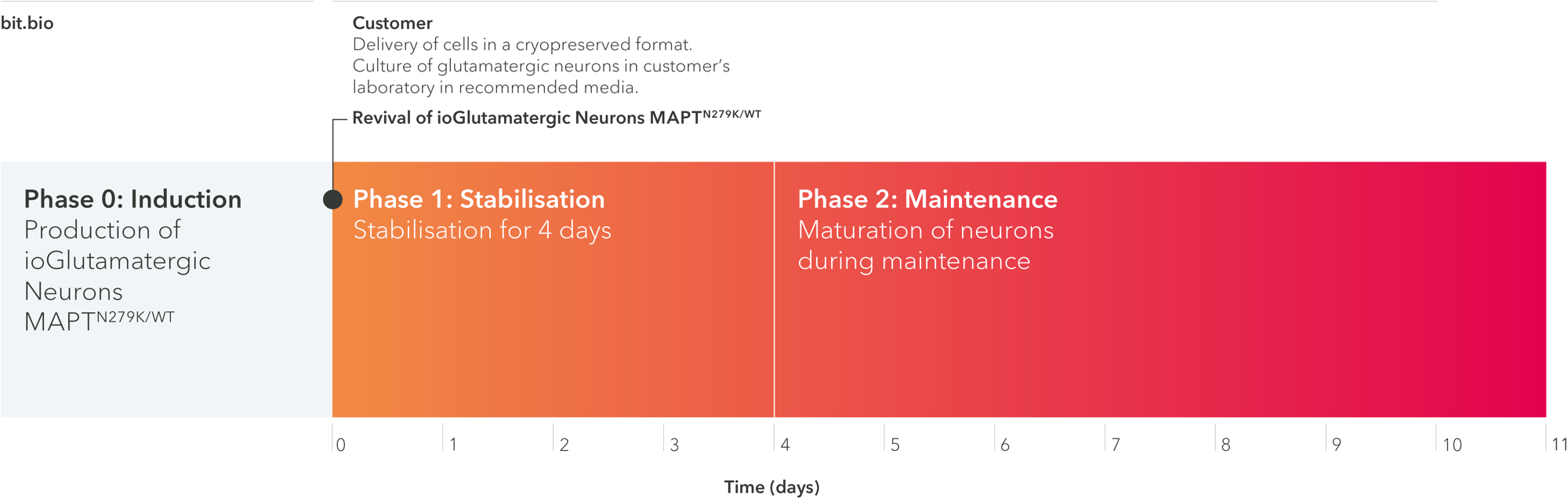

ioGlutamatergic Neurons MAPT N279K/WT arrive ready to plate

ioGlutamatergic Neurons MAPT N279K/WT are delivered in a cryopreserved format and are programmed to mature rapidly upon revival in the recommended media. The protocol for the generation of these cells is a two-phase process: Phase 1, Stabilisation for 4 days; Phase 2, Maintenance, during which the neurons mature. Phases 1 and 2 after revival of cells are carried out by the customer.

Industry leading seeding density

Do more with every vial
ioGlut-WT-well_plate-2

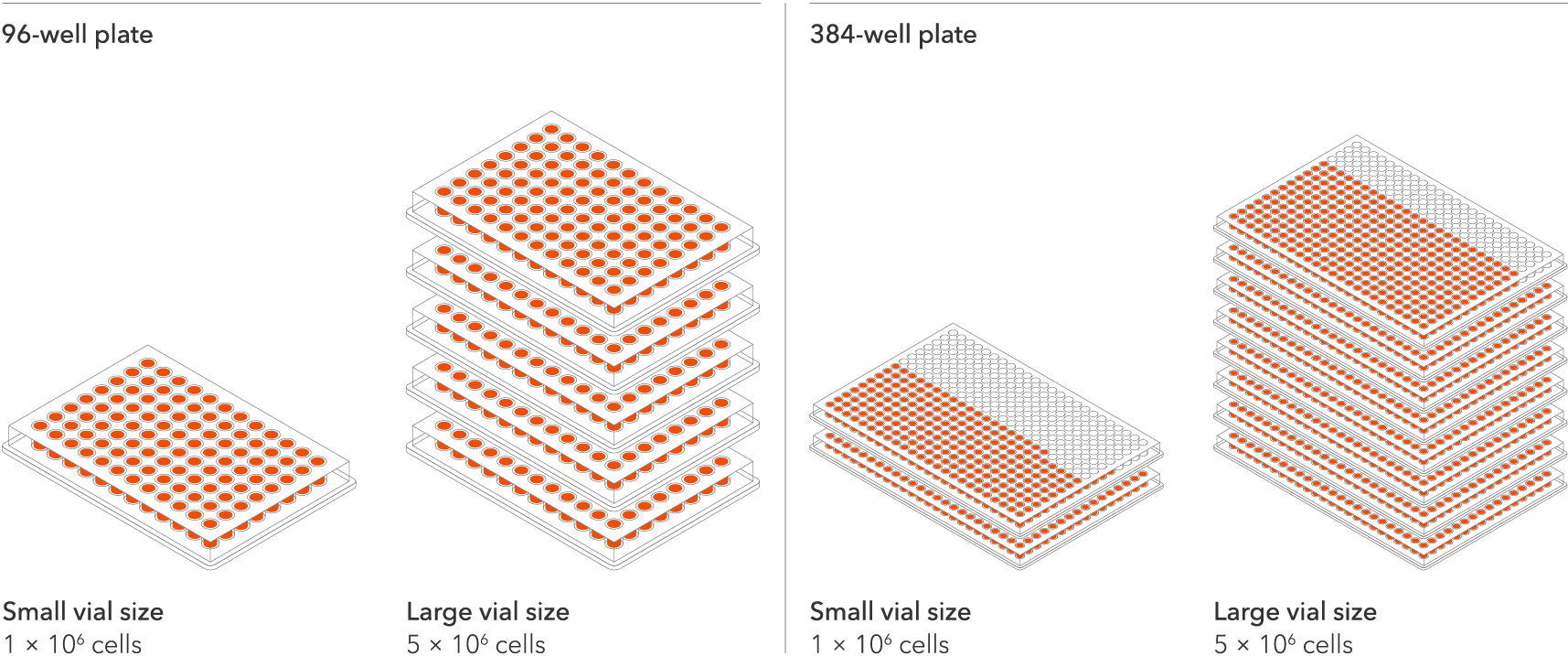

ioGlutamatergic Neurons MAPT N279K/WT cells are compatible with plates ranging from 6 to 384 wells.
The recommended seeding density is 30,000 cells/cm2, compared to up to 500,000 cells/cm2 for other similar products on the market.
This means scientists are able to do more with every vial and expand experimental design within budget without losing out on quality, resulting in more experimental conditions, more repeats, and more confidence in the data.
One small vial can plate a minimum of 0.7 x 24-well plate, 1 x 96-well plate, or 1.5 x 384-well plates. One Large vial can plate a minimum of 3.6 x 24-well plates, 5.4 x 96-well plates, or 7.75 x 384-well plates.

Product information

Starting material

Human iPSC line

Karyotype

Normal (46, XY)

Seeding compatibility

6, 12, 24, 48, 96 & 384 well plates

Shipping info

Dry ice

Donor

Caucasian adult male (skin fibroblast)

Vial size

Small: >1 x 10⁶ viable cells
Large: >5 x 10⁶ viable cells

Quality control

Sterility, protein expression (ICC), gene expression (RT-qPCR) and genotype validation (Sanger sequencing)

Differentiation method

opti-ox cellular reprogramming

Recommended seeding density

30,000 cells/cm2

User storage

LN2 or -150°C

Format

Cryopreserved cells

Genetic modification

Heterozygous N279K missense mutation in the MAPT gene

Applications

FTD research
Drug discovery and development
Disease modelling
High content imaging
Western blotting
Electrophysiological assays (MEA)
Co-culture studies

Product use

ioCells are for research use only
